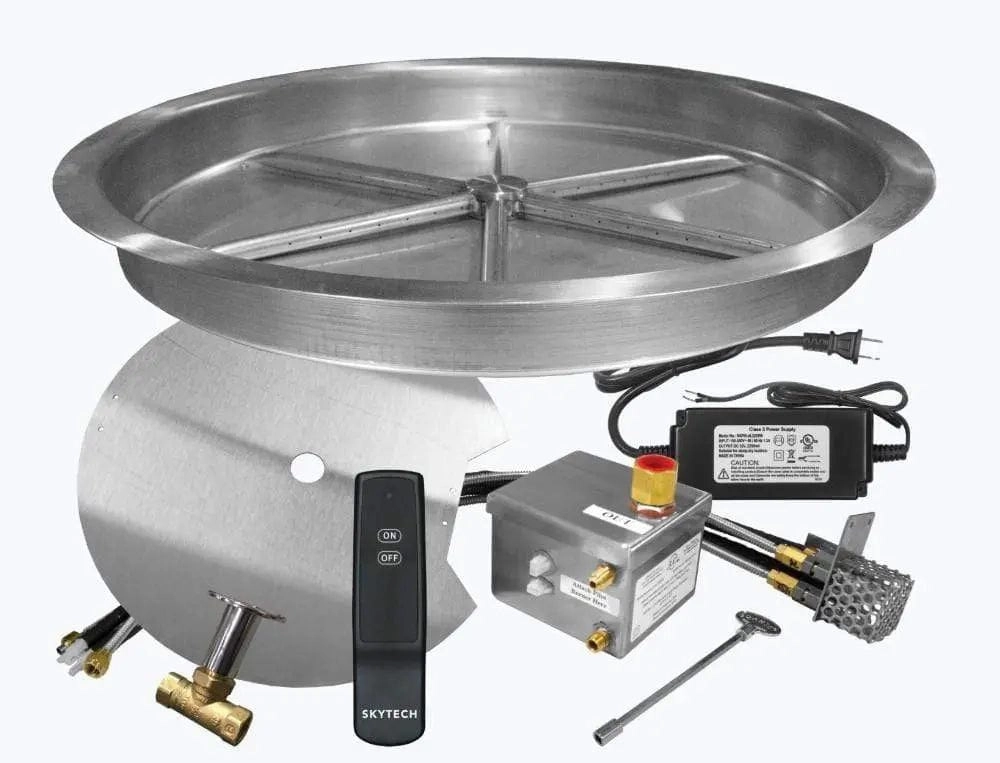

Firegear 29" Stainless Steel Round Pan Gas Fire Pit Kit with Remote FPB-29RBSAWS Review
Do you need to heat your patio or outdoor living area?Check the Firegear 29" Stainless Steel Round Pan Gas Fire Pit Kit with Remote FPB-29RBSAWS that is for you!
This provides a high-quality burner system to complete your gas fire pit project. Both the burner and the pan are constructed from heavy-duty 304 stainless steel to create a long-lasting and durable product, while the unique "spur" design creates a realistic flame appearance.
Every project is different, with its own set of unique challenges. Thats why versatility is paramount when designing and constructing your outdoor project. Firegear Outdoors has developed a new system with the capability to satisfy even the most demanding jobs. This new all-weather electronic ignition system will make designing your project easier as well as make installation a breeze.
Disclaimer: Btu listings are basedon 7.0WC for Natural Gas and11.0WC for Liquid Propane (LP)at the burner orifice when usingFiregear Outdoors Burning Spurs.If you use a burner other than aBurning Spur, Btus will vary.
AWSOVERVIEW
Theis what allows a fire pit to be operated with remote control. It also provides the necessary safety featuresand includes a plug-in transformer thatlets youplugged it into an outdoor ground-fault 120V/15A outlet. The valve system connects to a fire pit burner. A pilot assembly ignites the burner flameand also is a safety feature as it has a flame sensor. If the unit does not sense any flame, it will try to reignite and if it can't, it will shut down on its own. This system adds safety and convenience to your fire feature.
Purchase the Firegear 29" Stainless Steel Round Pan Gas Fire Pit Kit with Remote FPB-29RBSAWS today. Available here at Flame Authority, your Trusted Dealer!
Features
- Available in Electronic (AWS),Spark (TMSI)andMatch Throw (MT)Ignition Systems models.
- Round stainless steel drop-in pan with lip
- Stainless steel burning spur
- AWS fully electronic ignition - 30VDC (Requires 120Vac) - Assembled (GOE-30VDC) power supply, AWS control panel with On/OFF weatherproof switch
- Propane conversion kit sold separately.
Manuals
Need assistance?Talk to an Expert at 1-800-923-4556 or email: [email protected] to get the best-suited Fire Pit Burner Kits for your needs.
Specifications
- Pan Size: 29"
- Gas Type: Natural Gas / Liquid Propane
- BTU: 125,000
- Ignition System: All-Weather Electronic Ignition System
- Burner Size: 22" Spur
- Burner Material: Stainless Steel
- Depth: 2
- Min/MaxOpening orDiameter: 30 - 31
- Inside/OutsideDimention: 29ID
- GroundLevel: 18
- SideWall: 36"
- CombustibleCeiling: 120"
- CombustibleFloor: 18"
Gas Pressure
Min. Inlet
- Natural Gas: 3.5 WC ( PSI) (0.87kPa)
- Liquid Propane: 8.0 WC ( PSI) (1.99kPa)
Max. Inlet
- Natural Gas: 14.0 WC ( PSI) (3.48kPa)
- Liquid Propane: 14.0 WC ( PSI) (3.48kPa)
Normal Inlet
- Natural Gas: 7.0 WC ( PSI) (1.74 kPa)
- Liquid Propane: 11.0 WC ( PSI) (2.73 kPa)
Caution:DO NOT USE REGULAR STONE OR ROCKdue to susceptibility of explosion.
Glass and Media
How much Media should I use?
- Lava Rock Only-20lbs
- Lava Rock as a Base- 20 lbs
- Glass (on top of Lava Rock)-40 lbs
- Lava Stones(on top of Lava Rock) -25lbs
- Glass Only- 90lbs
Black Lava Rock 10 lb. Bag
Black Lava Rock 40 lb. Bag
Dark Gray Lava Stones
Black Broken Glass
Copper Broken Glass
Crystal Broken Glass
Dark Blue Broken Glass
Light Blue Broken Glass
Seabreeze Broken Glass
Black Reflective Glass
Bronze Reflective Glass
Cobalt Reflective Glass
Copper Reflective Glass
Silver Reflective Glass
Optional Accessories
Conversion Kit OAS-LPK31
- Universal LP Conversion kit for: 125,000 BTU, includes: OAS-LP31, #S499-8,
#113-SS4-D5, U3-8D-S
Firegear Pilot Burner Orifice FG-AWS-PBO
- Pilot burner orifice for FG-AWS30VDC-GOEK and FG-AWS30VDC-K
- AWEIS standard capacity 30VDC valve
Stainless Steel LidLID-29R2
- Made of 304 stainless steel
- Brushed finished round lid
- Sleek and round flat design for a contemporary look
Flexible Installation Collar FLEXFRAME-SS
- Allows you the flexibility to fill the gap between the fire pit structure and the pan.
- Engineered to protect against the outdoor elements including salt water environment
- Flexible and easy to adapt for round, square, and rectangular fire pits.
3 pcs Flexible Frame -FLEXFRAME-SS3
- Allows you the flexibility to fill the gap between the fire pit structure and the pan.
- Engineered to protect against the outdoor elements including salt water environment
- Flexible and easy to adapt for round, square, and rectangular fire pits.
Paver Control Panel KitPAVER-CP-AWS
- For use when building fire pit enclosures with SRW block and an AWS burner system
- INCLUDES: SRW bracket kit and extender Lintel - 12 L x 3 W Screws and fittings Tapcon concrete anchors
Paver Vent Kit(PAVER-VENT-4-LNTS,PAVER-VENT-6-LNTS)
- Intended for gas fire pit enclosures made from paver stones
- Kit includes two 3.625" x 8" or 5.625" x 8" vents with mounting plate and extension plate that extend up to 10 wide, two Tapcon concrete anchors, and two 12x3 Lintels (20 gauge galvanized steel).
- Each vent provides 18 square inches of ventilation
