Firegear 39-inch Round Flat Pan Gas Fire Pit Burner Kit w/ AWS Electronic Ignition System Review

Have been looking for efficient burner kit for your fire pit? We offer you theFiregear 39-inch Round Flat Pan Gas Fire Pit Burner Kit w/ AWS Electronic Ignition System. Available here at Flame Authority, your trusted dealer!

This burner system, made of durable 304 stainless steel, ensures long-lasting performance and features a "spur" design for realistic flames. Firegear Outdoors all-weather electronic ignition system brings versatility to outdoor projects, simplifying design and installation. It supports remote control operation, includes safety features like a flame sensor, and connects to a 120V/15A outlet with a plug-in transformer. The flame sensor reignites the burner if needed and shuts it off if no flame is detected, enhancing safety and convenience.

Disclaimer: Btu listings are basedon 7.0WC for Natural Gas and11.0WC for Liquid Propane (LP)at the burner orifice when usingFiregear Outdoors Burning Spurs.If you use a burner other than aBurning Spur, Btus will vary.

Features

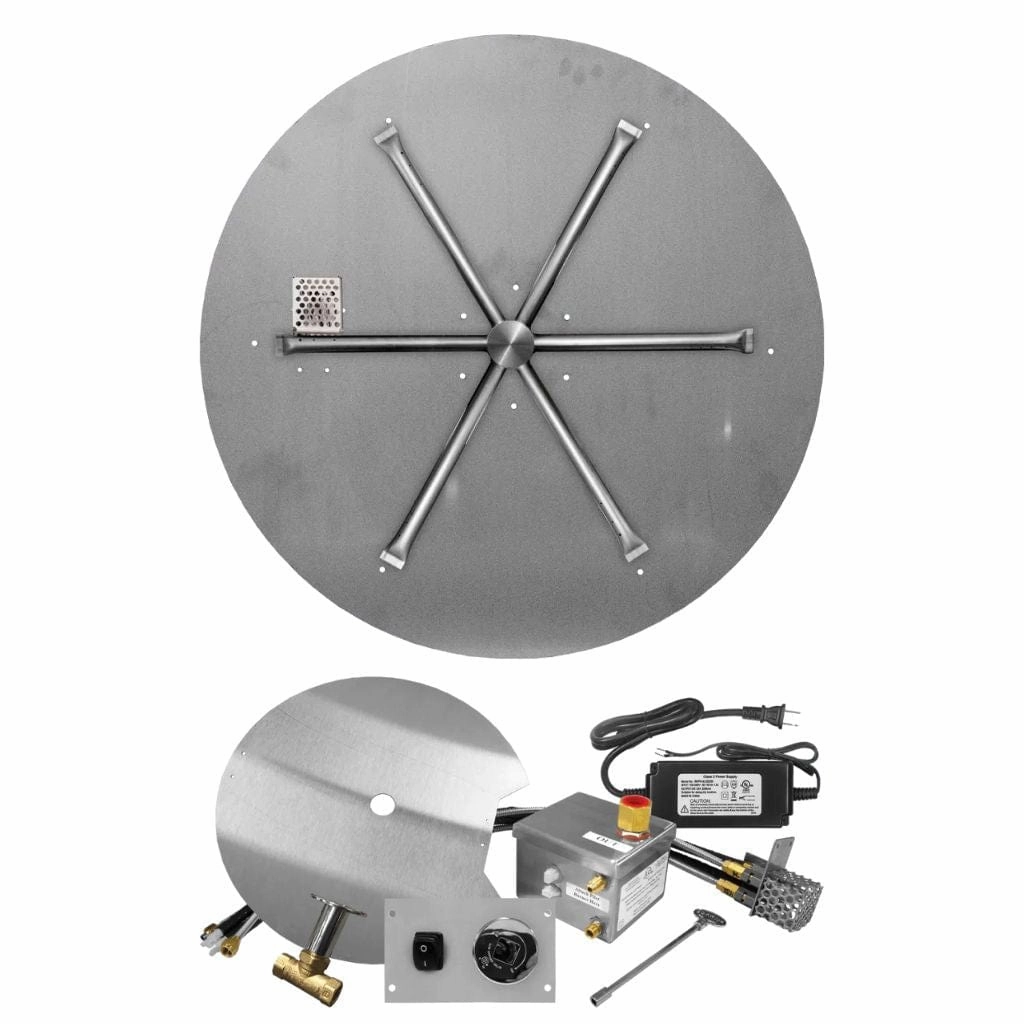

• Round stainless steel disc
• Stainless steel burning spur

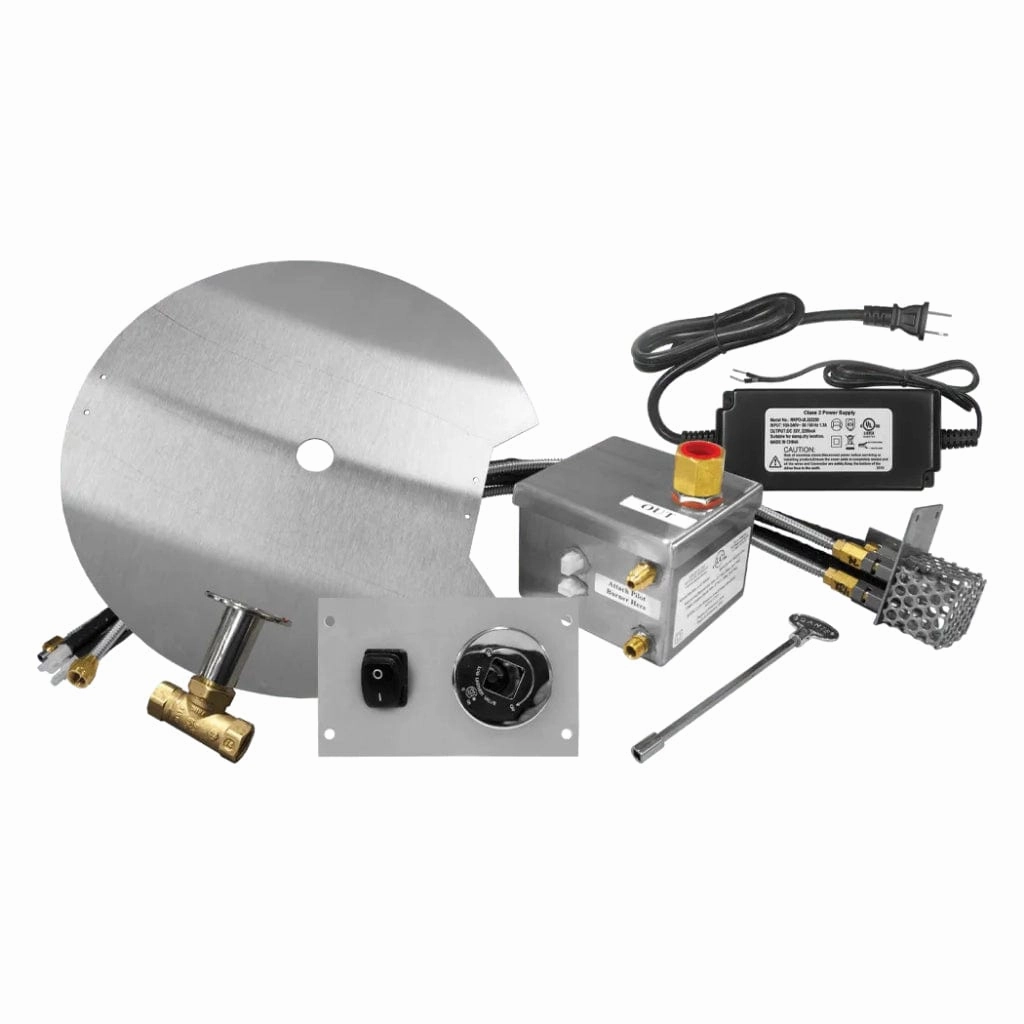

• AWS fully electronic ignition - 30VDC (Requires 120Vac) - Assembled (GOE-30VDC) power supply, AWS control panel with On/OFF weatherproof switch.
• Ships as Natural Gas or Propane. (Propane conversion kits are also available and sold separately.)
• Also available in models with TPSI Ignition, and Match Throw Ignition Systems.

Check your Firegear 39-inch Round Flat Pan Gas Fire Pit Burner Kit w/ AWS Electronic Ignition System now. Available here at Flame Authority, your Trusted Dealer!

Manuals

Need assistance? Talk to an Expert at 1-800-923-4556 or email: [email protected] to get the best-suited Burner Kit for your needs.

Specifications

• Pan Size: 39"
• Burner Size: 36"
• Gas Type: Natural Gas / Liquid Propane

• BTU: 250,000
• Depth: 1/16
• Min/MaxOpening orDiameter: Max. 37"
• Inside/OutsideDimention: 39"OD
• GroundLevel: 18
• SideWall: 36"
• CombustibleCeiling: 120"
• CombustibleFloor: 18"

Gas Pressure

Min. Inlet

• Natural Gas: 3.5 WC ( PSI) (0.87kPa)
• Liquid Propane: 8.0 WC ( PSI) (1.99kPa)

Max. Inlet

• Natural Gas: 14.0 WC ( PSI) (3.48kPa)
• Liquid Propane: 14.0 WC ( PSI) (3.48kPa)

Normal Inlet

• Natural Gas: 7.0 WC ( PSI) (1.74 kPa)
• Liquid Propane: 11.0 WC ( PSI) (2.73 kPa)

Glass and Media

How much Media should I use?

• Lava Rock Only-25lbs
• Lava Rock as a Base- 25 lbs
• Glass (on top of Lava Rock)- 50 lbs
• Lava Stones(on top of Lava Rock) -30lbs
• Glass Only- 110 lbs

Black Lava Rock 10 lb. Bag

Black Broken Glass

Copper Broken Glass

Crystal Broken Glass

Dark Blue Broken Glass

Light Blue Broken Glass

Seabreeze Broken Glass

Black Reflective Glass

Bronze Reflective Glass

Cobalt Reflective Glass

Copper Reflective Glass

Silver Reflective Glass

Optional Accessories

2 pcs Flexible Frame - FLEXFRAME-SS

• Allows you the flexibility to fill the gap between the fire pit structure and the pan.
• Engineered to protect against the outdoor elements including salt water environment
• Flexible and easy to adapt for round, square, and rectangular fire pits.
