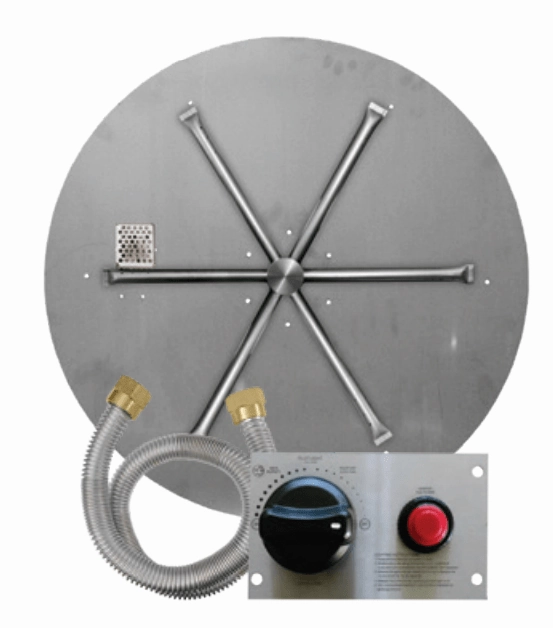

Upgrade Your Firegear Stainless Steel TPSI Round Flat Liquid Propane 26-inch Fire Pit Burner System with Battery-Powered Spark Igniter FPB-26DBS22TPSI-P
Why Choose the Firegear TPSI Round Flat Liquid Propane Fire Pit Burner FPB-26DBS22TPSI-P?
Transform your outdoor living area with the Firegear TPSI Round Flat Liquid Propane Fire Pit Burner FPB-26DBS22TPSI-P. This 26-inch burner is expertly crafted from durable stainless steel, offering exceptional heat performance and resistance to the elements. Its round, flat design ensures an even flame pattern, creating a cozy and inviting atmosphere. Designed for liquid propane, this burner provides a clean, efficient burn with ease of installation. The TPSI ignition system adds safety and convenience, delivering reliable sparks for quick and safe startups. Elevate your fire pit to a centerpiece of comfort and style with this premium burner.
Key Features for Firegear TPSI Round Flat Fire Pit Burner
- Tested and Approved to ANSI Z21.97-2014/CSA 2.41-2014 standards by Underwriters Laboratories (UL)
- Ready to install
- Most popular ignition system, least amount of cost
- Light a match or a butane lighter
- Can be used in residential installs
- This system is the easiest to use, and with non-listed burners, you can achieve high BTUs and big flames.
Gas Pressures
Natural Gas
- Min. Inlet: 3.5WC (0.87kPa)
- Max. Inlet: 10.5 WC (2.61kPa)
- Normal Inlet: 7.0 WC (1.74kPa)
Liquid Propane
- Min. Inlet: 10.5 WC (2.61kPa)
- Max. Inlet:13.0 WC (3.23kPa)
- Normal Inlet:11.0 WC (2.73kPa)
Manuals for Firegear TPSI Round Flat Liquid Propane Fire Pit Burner
Specifications for Firegear TPSI Round Flat Liquid Propane Fire Pit Burner FPB-26DBS22TPSI-P
- Pan Size:26"
- Burner Size:22"
- BTU:125,000
- Ignition System:TPSI
- Burner Pan Type:Flat
- Burner Pan Material:Stainless Steel
- Disc Depth: 1/16
- Pan Diameter: 25 Dia
- Min.Install Opening:23"
- Ground Level: 8"
- Side Wall: 36
- Combustible Ceiling: 120"
- Combustible Floor: 18"
Caution:DO NOT USE REGULAR STONE OR ROCK due to susceptibility to explosion.
Disclaimer: BTU listings are based on 7.0 WC for natural gas and 11.0 WC for liquid propane (LP) at the burner orifice. Flex line size and proper gas pipe sizing will also affect BTU's. As a result, your BTUs may vary slightly from Table 2 specifications.
