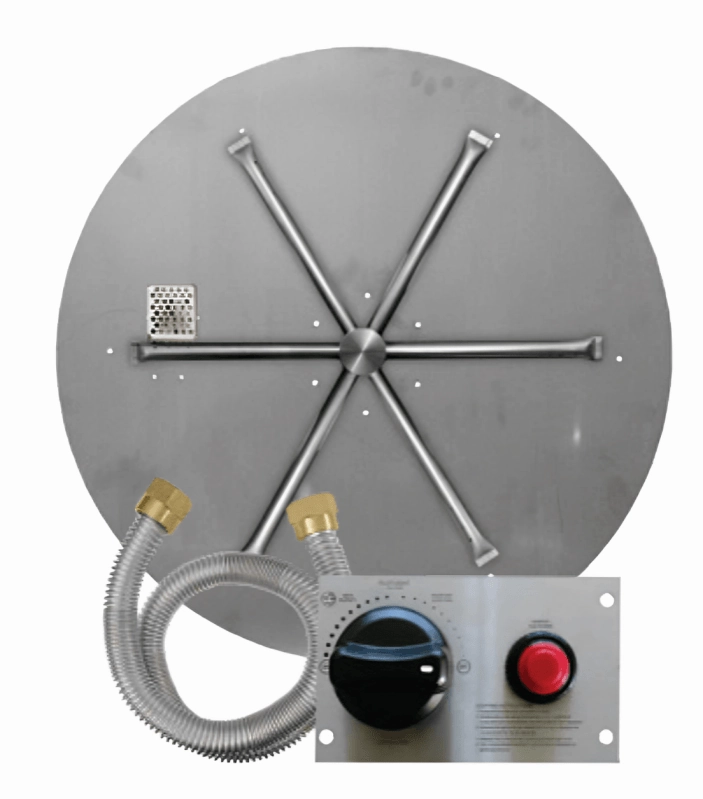

Upgrade Your Firegear Stainless Steel TPSI Round Flat Liquid Propane 29-inch Fire Pit Burner System with Battery-Powered Spark Igniter FPB-29DBS22TPSI-P
Why Choose the Firegear TPSI Round Flat Liquid Propane Fire Pit Burner FPB-29DBS22TPSI-P?
Enhance your outdoor space with the Firegear TPSI Round Flat Liquid Propane Fire Pit Burner FPB-29DBS22TPSI-P. Measuring 29 inches, this premium burner features a round, flat design for even flame distribution, creating a welcoming and elegant ambiance. Crafted from durable stainless steel, it is built to withstand harsh outdoor conditions while delivering consistent performance. The liquid propane configuration ensures clean-burning flames, while the TPSI ignition system offers safe and reliable startups every time. Perfect for both modern and traditional fire pit designs
Add ons Item: Lava Rock Only: 20 lbs Lava Rock as a Base:20 lbs Glass (on top of Lava Rock): 40 lbsLava Stones (on top of Lava Rock): 25 lbs Glass Only: 90 lbs
Also Available in: , ,
Key Features for Firegear TPSI Round Flat Fire Pit Burner
- Tested and Approved to ANSI Z21.97-2014/CSA 2.41-2014 standards by Underwriters Laboratories (UL)
- Ready to install
- Most popular ignition system, least amount of cost
- Light a match or a butane lighter
- Can be used in residential installs
- This system is the easiest to use, and with non-listed burners, you can achieve high BTUs and big flames.
Gas Pressures
Natural Gas
- Min. Inlet: 3.5WC (0.87kPa)
- Max. Inlet: 10.5 WC (2.61kPa)
- Normal Inlet: 7.0 WC (1.74kPa)
Liquid Propane
- Min. Inlet: 10.5 WC (2.61kPa)
- Max. Inlet:13.0 WC (3.23kPa)
- Normal Inlet:11.0 WC (2.73kPa)
Manuals for Firegear TPSI Round Flat Liquid Propane Fire Pit Burner
Specifications for Firegear TPSI Round Flat Liquid Propane Fire Pit Burner FPB-29DBS22TPSI-P
- Pan Size:29"
- Burner Size:22"
- BTU:125,000
- Ignition System:TPSI
- Burner Pan Type:Flat
- Burner Pan Material:Stainless Steel
- Disc Depth: 1/16
- Pan Diameter: 29 Dia
- Min.Install Opening:27"
- Ground Level: 8"
- Side Wall: 36
- Combustible Ceiling: 120"
- Combustible Floor: 18"
Caution:DO NOT USE REGULAR STONE OR ROCKdue to susceptibility of explosion.
Disclaimer: BTU listings are based on 7.0 WC for natural gas and 11.0 WC for liquid propane (LP) at the burner orifice. Flex line size and proper gas pipe sizing will also affect BTU's. As a result, your BTUs may vary slightly from Table 2 specifications.
