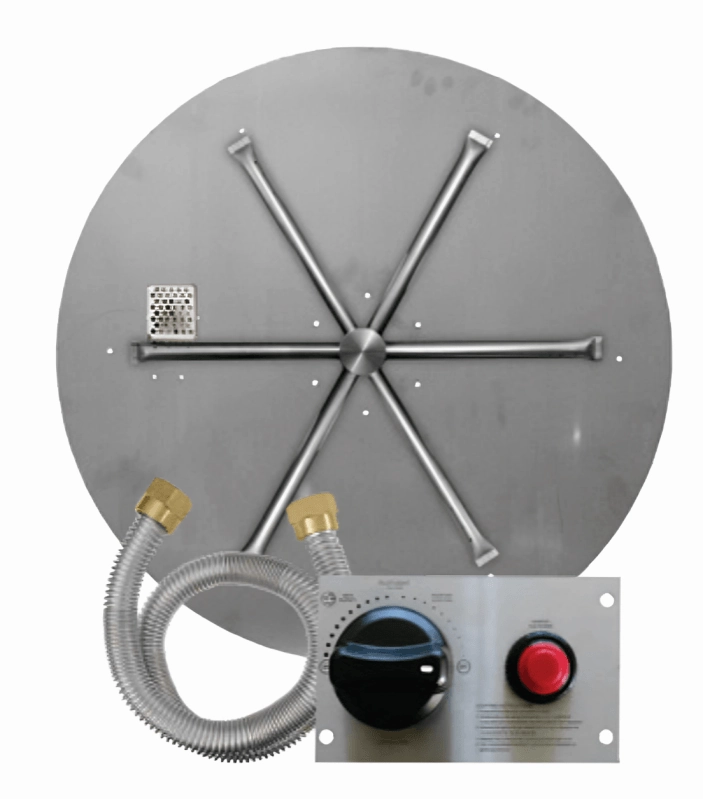

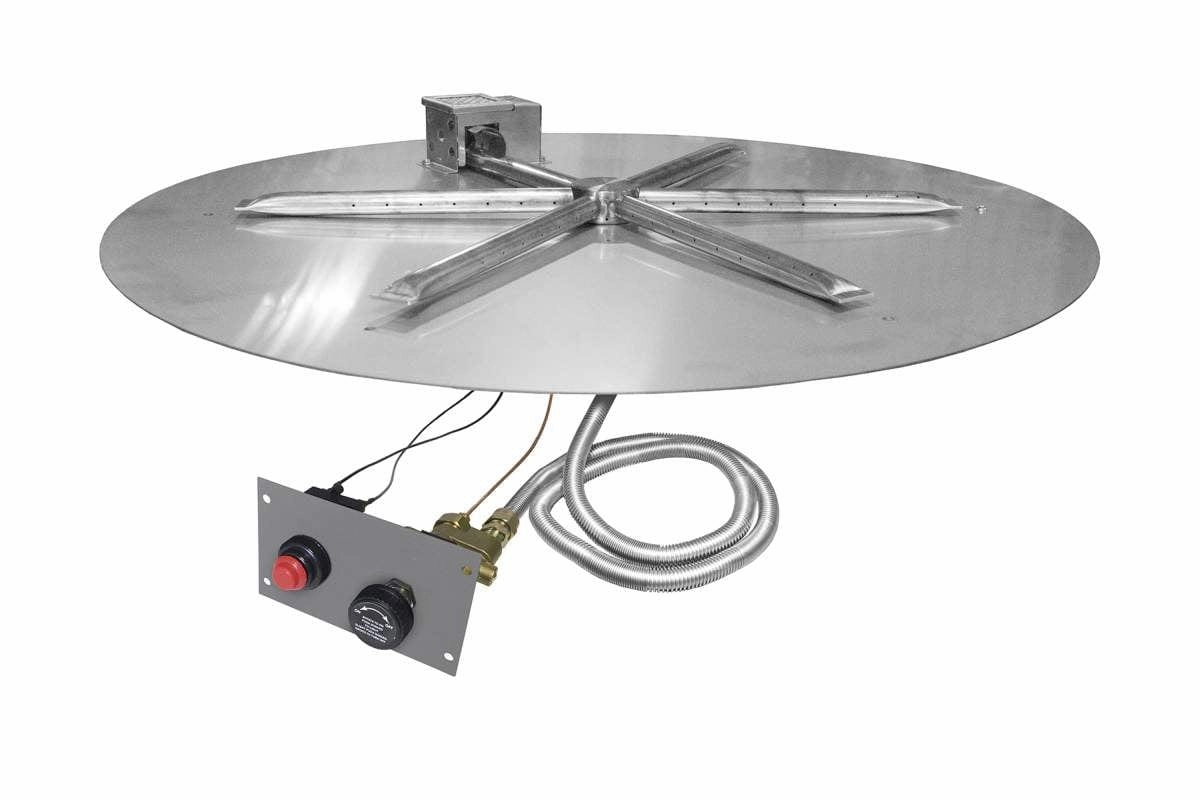

Enhanced Your Firegear Stainless Steel TPSI Round Flat Natural Gas 29-inch Fire Pit Burner System with Battery-Powered Spark Igniter FPB-29DBS22TPSI-N
Why Choose the Firegear TPSI Round Flat Natural Gas Fire Pit Burner FPB-29DBS22TPSI-N?
The Firegear TPSI Round Flat Natural Gas Fire Pit Burner FPB-29DBS22TPSI-N is an exceptional choice for outdoor fire pit enthusiasts. Crafted from premium stainless steel, this burner ensures durability and consistent performance. Its flat, round design provides a sleek, modern aesthetic, while the natural gas configuration offers an efficient and clean-burning flame. Perfect for creating a warm, welcoming ambiance, this burner is easy to install and ideal for enhancing outdoor gatherings with style and functionality.
Add ons Item: Lava Rock Only: 20 lbs. Lava Rock as a Base:20 lbs Glass (on top of Lava Rock): 40 lbs Lava Stones (on top of Lava Rock): 25 lbs Glass Only: 90 lbs
Also Available in: , , , ,
Key Features for Firegear TPSI Round Flat Fire Pit Burner
- Tested and Approved to ANSI Z21.97-2014/CSA 2.41-2014 standards by Underwriters Laboratories (UL)
- Ready to install
- Most popular ignition system, least amount of cost
- Light a match or a butane lighter
- Can be used in residential installs
- This system is the easiest to use, and with non-listed burners, you can achieve high BTUs and big flames.
Gas Pressures
Natural Gas
- Min. Inlet: 3.5WC (0.87kPa)
- Max. Inlet: 10.5 WC (2.61kPa)
- Normal Inlet: 7.0 WC (1.74kPa)
Liquid Propane
- Min. Inlet: 10.5 WC (2.61kPa)
- Max. Inlet:13.0 WC (3.23kPa)
- Normal Inlet:11.0 WC (2.73kPa)
Manuals for Firegear TPSI Round Flat Natural Gas Fire Pit Burner
Specifications for Firegear TPSI Round Flat Natural Gas Fire Pit Burner FPB-29DBS22TPSI-N
- Pan Size:29"
- Burner Size:22"
- BTU:125,000
- Ignition System:TPSI
- Burner Pan Type:Flat
- Burner Pan Material:Stainless Steel
- Disc Depth: 1/16
- Pan Diameter: 29 Dia
- Min.Install Opening:27"
- Ground Level: 8"
- Side Wall: 36
- Combustible Ceiling: 120"
- Combustible Floor: 18"
Caution:DO NOT USE REGULAR STONE OR ROCK due to susceptibility of explosion.
