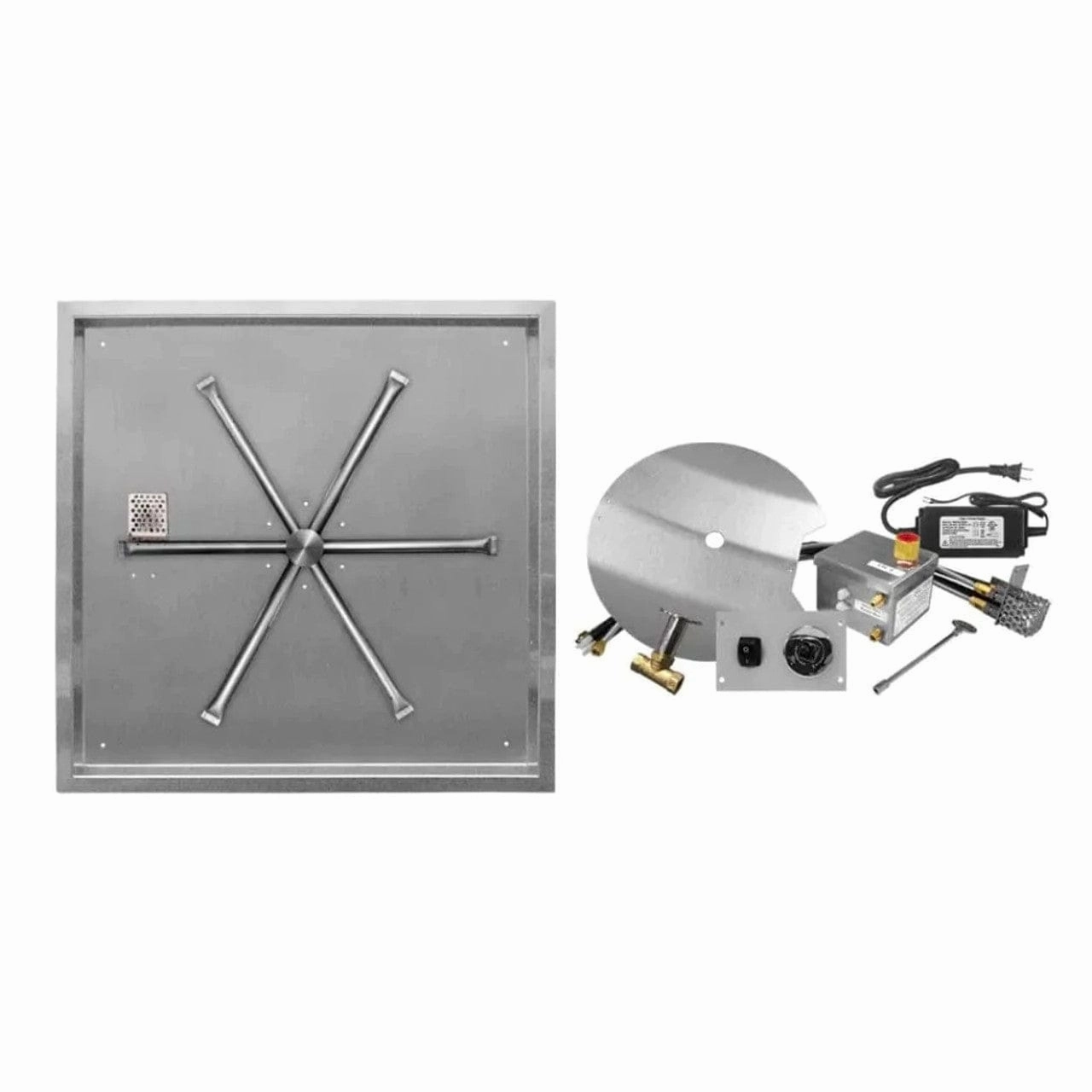

Enhance Your Firegear Stainless Steel TPSI Square Drop-In Liquid Propane 26-inch Fire Pit Burner System FPB-26SBS22TPSI-P with Battery-Powered Spark Igniter
Why Choose the Firegear TPSI Square Drop-In Liquid Propane Fire Pit Burner FPB-26SBS22TPSI-P?
The Firegear TPSI Square Drop-In Liquid Propane Fire Pit Burner FPB-26SBS22TPSI-P combines durability, efficiency, and modern design for your fire pit needs. Constructed from premium stainless steel, it delivers a long-lasting, even flame while maximizing propane efficiency. The square drop-in design ensures easy installation and a sleek, seamless fit for a contemporary look. Perfect for enhancing your outdoor gatherings, this reliable burner creates a cozy and inviting atmosphere in any backyard or patio.
Key Features for Firegear TPSI Square Drop-In Fire Pit Burner
- Heavy-Duty Construction: The burner andbowl pan feature 304 stainless steel construction
- The TPSI ignition system offers a simple ignition process
- Burning Spur: The stainless steel burning spur provides a realistic fBTU: Thesece
- High BTU -These kits are designed with higher capacity orifices to provide a larger amount of BTU
- Most popular ignition system, least amount of cost
- Light a match or a butane lighter
- Can be used in residential installs
- This system is the easiest to use, and with non-listed burners, you can achieve high BTUs and big flames.
Manuals for Firegear TPSI Square Drop-In Liquid Propane Fire Pit Burner
Specifications for Firegear TPSI Square Drop-In Liquid Propane Fire Pit Burner FPB-26SBS22TPSI-P
- Pan Size:26"
- Burner Size:22"
- BTU:125,000
- Ignition System:TPSI
- Burner Pan Type: Drop-In
- Burner Pan Material: Stainless Steel
- Shape: Square
- Pan Depth:2
- Min/Max Opening: 26 - 27
- Inside Pan: 26
- Ground Level:8
- Side Wall:36
- Combustible Ceiling: 120
- Combustible Wall:18
Caution:DO NOT USE REGULAR STONE OR ROCKdue to susceptibility of explosion.
Gas Pressure
Natural Gas:
- Min. Inlet: 3.5WC (0.87kPa)
- Max. Inlet: 10.5 WC (2.61kPa)
- Normal Inlet: 7.0 WC (1.74kPa)
Liquid Propane:
- Min. Inlet: 10.5 WC (2.61kPa)
- Max. Inlet:13.0 WC (3.23kPa)
- Normal Inlet:11.0 WC (2.73kPa)
Disclaimer: BTU listings are based on 7.0WC for natural gas and 11.0WC for liquid propane (LP) to the gas valve. Flex line size and proper gas pipe sizing will alsoaffect BTU's. As a result, your BTUs may vary slightly from Table 2 specifications.
