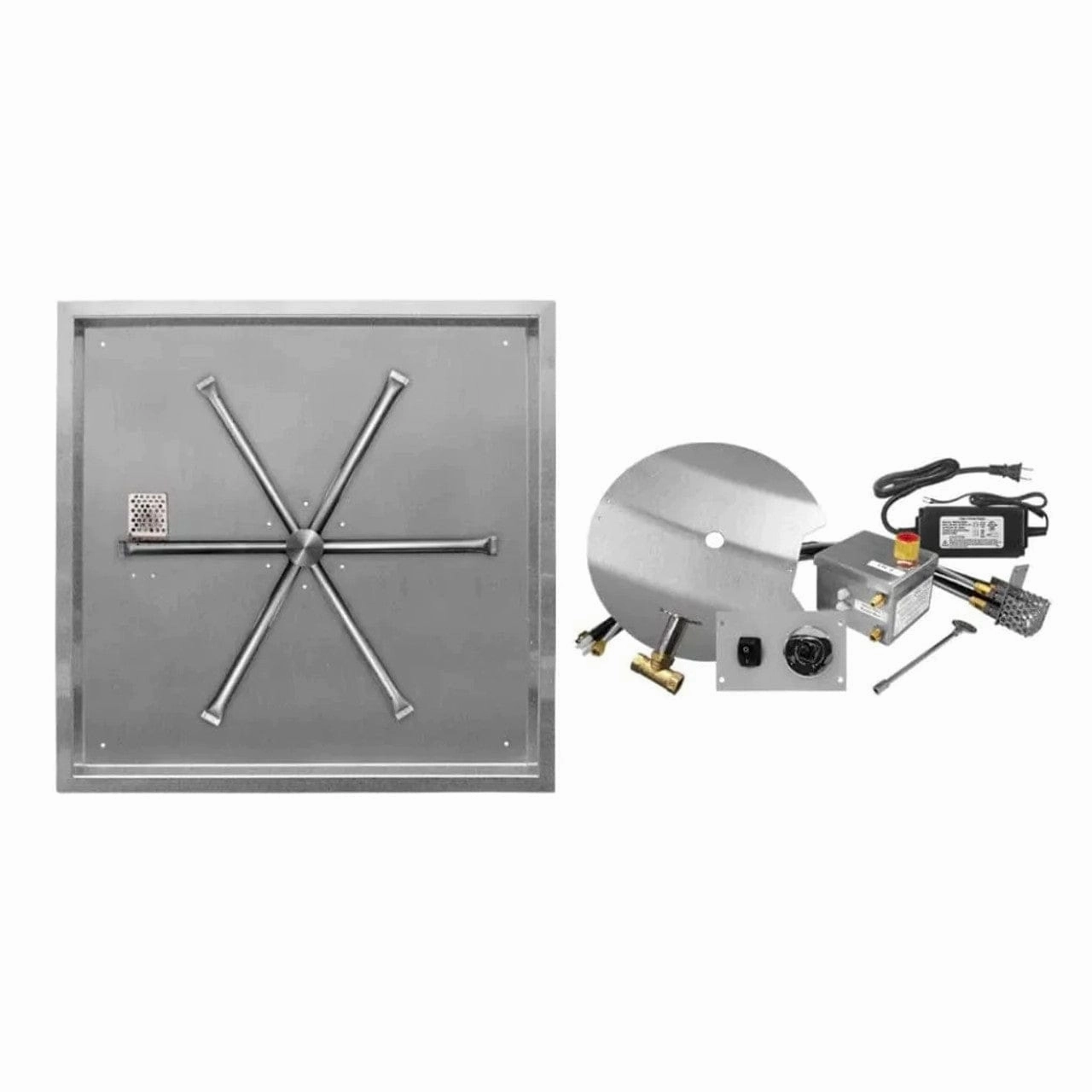

Upgrade Your Firegear Stainless Steel TPSI Square Flat Natural Gas 25-inch Fire Pit Burner System FPB-25SFBS22TPSI-N with Battery-Powered Spark Igniter
Why Choose the Firegear TPSI Square Flat Natural Gas Fire Pit Burner FPB-25SFBS22TPSI-N?
The Firegear TPSI Square Flat Natural Gas Fire Pit Burner FPB-25SFBS22TPSI-N offers an elegant solution for enhancing your outdoor fire pit. Constructed from premium stainless steel, this burner provides durability and superior heat performance. Its square, flat design complements modern aesthetics, while the natural gas configuration ensures a clean, efficient burn. The integrated TPSI ignition system offers simple and reliable startup, making it convenient to use. Perfect for creating a cozy and stylish gathering space in your outdoor living area.
Add ons Item: Lava Rock Only:30 lbs. Lava Rock as a Base:25 lbs Glass (on top of Lava Rock): 60 lbs Lava Stones (on top of Lava Rock): 30 lbs Glass Only:120 lbs
Also Available in: ,
Key Features for Firegear TPSI Square Flat Fire Pit Burner
- Heavy-Duty Construction: The burner andbowl pan feature 304 stainless steel construction
- The TPSI ignition system offers a simple ignition process
- Burning Spur: The stainless steelburning spur provides a realistic flame presence
- High BTU: Thesekits are designed with higher capacity orifices to provide a larger amount of BTU
- Most popular ignition system, least amount of cost
- Light a match or a butane lighter
- Can be used in residential installs
- This system is the easiest to use, and with non-listed burners, you can achieve high BTUs and big flames.
Gas Pressures
Natural Gas
- Min. Inlet: 3.5WC (0.87kPa)
- Max. Inlet: 10.5 WC (2.61kPa)
- Normal Inlet: 7.0 WC (1.74kPa)
Liquid Propane
- Min. Inlet: 10.5 WC (2.61kPa)
- Max. Inlet:13.0 WC (3.23kPa)
- Normal Inlet:11.0 WC (2.73kPa)
Manuals for Firegear TPSI Square Flat Natural Gas Fire Pit Burner
Specifications for Firegear TPSI Square Flat Natural Gas Fire Pit Burner FPB-25SFBS22TPSI-N
- Pan Size:25"
- Burner Size:22"
- BTU:125,000
- Ignition System:TPSI
- Burner Pan Type: Flat
- Burner Pan Material: Stainless Steel
- Shape: Square
- Disc Depth: 1/16
- Pan Diameter: 25 Sq
- Min. Install Opening: 23
- Ground Level: 8"
- Side Wall: 36
- Combustible Ceiling: 120"
- Combustible Floor: 18"
Caution:DO NOT USE REGULAR STONE OR ROCKdue to susceptibility of explosion.
Disclaimer: BTU listings are based on 7.0 WC for natural gas and 11.0 WC for liquid propane (LP) at the burner orifice. Flex line size and proper gas pipe sizing will also affect BTU's. As a result, your BTUs may vary slightly from Table 2 specifications.
