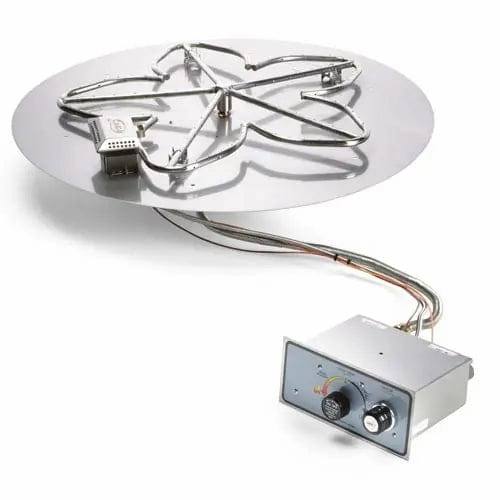

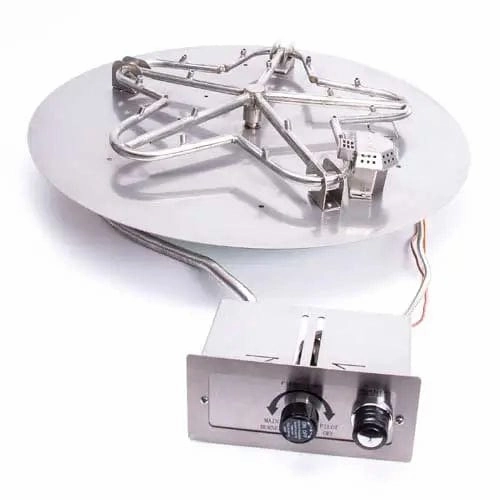

Name: HPC Fire 24" Round Flat Pan Push Button Fire Pit Insert PENTA24FPPK-FLEX
SKU: 597548

24" Round Flat Pan Push Button HPCFire Pit Insert PENTA24FPPK-FLEX Product Details

This is our mid-range fire pit insert utilizing safety pilot flame control- simply push the ignition button and valve control knob to start flame adjustment is done with the knob. This battery-operated system is a good solution for flame sensing necessity without AC power requirements.

How It Works

Start-Up: This is done by simultaneously pressing the valve control knob to start the flow of pilot gas and pressing the ignition button for spark. Release spark after pilot ignition, release valve control knob after ~20 seconds. Then turn the valve control knob counterclockwise to light the main burner. Operation: Flame height may be adjusted by turning valve control knob- counterclockwise provides more flame, clockwise lowers flame. If flame loss does occur, the system will automatically turn off all gas flow. Shut Down: To turn OFF the fire pit simply turn the valve control knob clockwise- slightly depress knob to reach OFF position.

Purchase the HPC Fire 24" Round Flat Pan Push Button Fire Pit Insert PENTA24FPPK-FLEX here in Flame Authority!

Features

Features:

Fully Assembled and ready to install. Control components are protected within the valve box.
Flex Line configuration provides versatile and simple installation.
Start ignition with push button and valve control knob.
Flame sensing- the system will turn off gas if the flame is lost.
Flame height is adjustable using a valve control knob.
Battery Operated System- This is the perfect solution for installs with no power.
Liquid Propane: Factory built & tested.
CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements.

Manuals

Manuals:

Need assistance? Talk to an Expert at 1-800-923-4556 or email: [email protected]to get the best-suited Fire Pit Burner Kits for your needs.

Specifications

Specifications:

Model: PENTA24FPPK-FLEX
Dimensions: L-24" x W-24"
Max BTU: 90,000
Nozzle BTU: 125,000
Burner Type: 18" Penta Standard / Torpedo
Gas Type: Natural Gas / Liquid Propane
Ignition Style: Push Button Flame Sensing
Required Items: Lava Rock / Rolled Lava Stone (2 bags), River Rock (2 boxes), Fire Glass (50 lb)
Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements.
Warranty: Lifetime warranty on burners

Outdoor Fire Logs and Rocks

Arizona Weathered Oak

Aspen Birch

Rolled Lava Stone

2 Bags Required for this unit

Western Driftwood

Lava Rock

2 Bags Required for this unit

Black Ceramic River Rock

2 Boxes required for this unit

Fire Glass

50 lbs Required for this unit

Cobalt Blue

Pacific Blue

Pacific Blue Reflective

Black

Clear

Starfire

Gray Reflective

Copper

Bronze

Optional Accessories

45" Round Black Vinyl CoverFPC-45

45" Black Vinyl Fire Pit Cover; Elastic band, designed for maximum enclosure width of 30-45".
Weight = 5 LBS - Box Dimensions 11x11x9"

30" Round Wind GuardWG30-RD

Round, 30" Dia, 8" Height
Features:- Tempered Glass - Heavy duty 3/16 " clear glass is tempered to improve durability and allow it to withstand high temperatures. Depending on wind guard size- 4 or 6 sections complete the desired shape. Brackets- Polished aluminum brackets and plastic support feet provided.

44" SS Free Form Install Collar - 2per BoxIC44SS-FF

The flex form install collar merges the gap between the fire pit structure and the insert pan for easy installation and auto-centering featured with a curved lip. This flexible install collar allows for an easy 3 step installation saving you time with our one size fits all product. The collar can be formed to fit any shaped fire pit.
1 Box required for this unit
