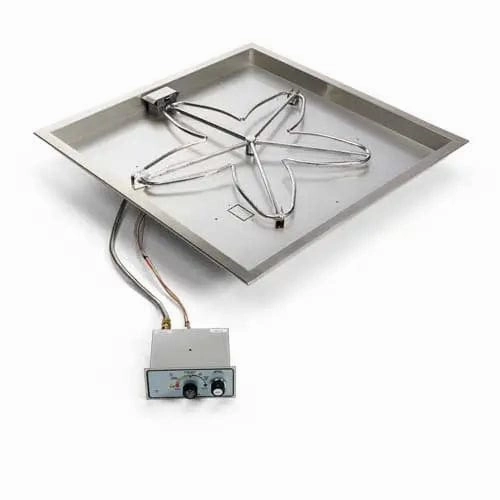

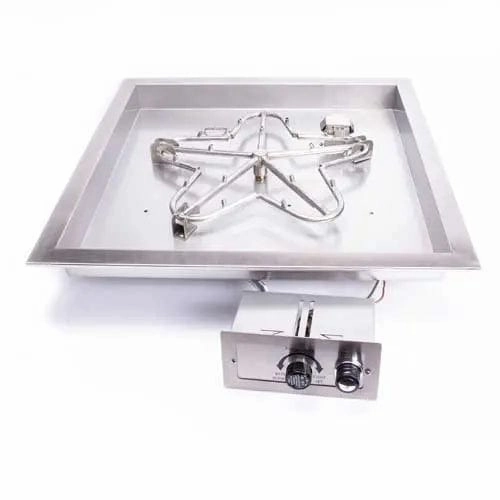

24" Square Bowl Pan HPC Fire Pit Insert FPPK24-SQBL-FLEX Product Details

This is our mid-range fire pit insert utilizing safety pilot flame control- simply push the ignition button and valve control knob to start flame adjustment is done with the knob. This battery-operated system is a good solution for flame sensing necessity without AC power requirements. This comes with a small tank.

How It Works

• Start-Up: This is done by simultaneously pressing the valve control knob to start the flow of pilot gas and pressing the ignition button for spark. Release spark after pilot ignition, release valve control knob after ~20 seconds. Then turn the valve control knob counterclockwise to light the main burner.
• Operation: Flame height may be adjusted by turning valve control knob- counterclockwise provides more flame, clockwise lowers flame. If flame loss does occur, the system will automatically turn off all gas flow.
• Shut Down: To turn OFF the fire pit simply turn the valve control knob clockwise- slightly depress the knob to reach the OFF position.

Features

• Available in 18", 24", 30", and 36" Model.
• Fully Assembled and ready to install. Control components are protected within the valve box.
• Flex Line configuration provides versatile and simple installation.
• Start ignition with push button and valve control knob.
• Flame sensing- the system will turn off gas if the flame is lost.
• Flame height is adjustable using a valve control knob.
• Battery Operated System- is the perfect solution for installs with no power.
• Natural Gas or Liquid Propane: Factory built & tested for either fuel.
• Made of #304, 18 gauge Stainless Steel
• The spun design adds rigidity
• Welded gas fitting for strength
• Weep holes for drainage

Manual:

Specifications:

• Model:
• FPPK24-SQBL-FLEX
• TOR-FPPK24-SQBL-FLEX
• Dimensions: L-24" x W-24" x D-2.5"
• Max BTU: 90,000
• Nozzle BTU: 125,000
• Burner Type: 18" Penta Standard / Torpedo
• Gas Type: Natural Gas / Liquid Propane
• Ignition Style: Push Button Flame Sensing
• Required Items: Lava Rock / Rolled Lava Stones (2 bags), River Rock (2 boxes), Fire Glass (70 lb), Flex-Form Install Collar (2 boxes)
• Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements.
• Warranty: Lifetime warranty on burners
