HPC Fire 24"x12" Rectangular Bowl H-Burner Pan Fire Pit 24X12SSEI-H REVIEW
This product is now available in Torpedo Burner only!
Are you planning to buy a Fire Pit Insert that displays flames vividly and makes your outdoor setting warm enough? Check the HPC Fire 24"x12" Rectangular Bowl H-Burner Pan Fire Pit 24X12SSEI-H now!

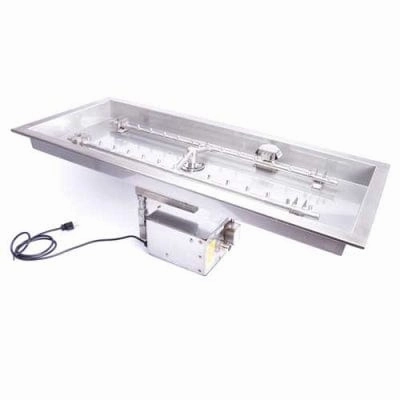

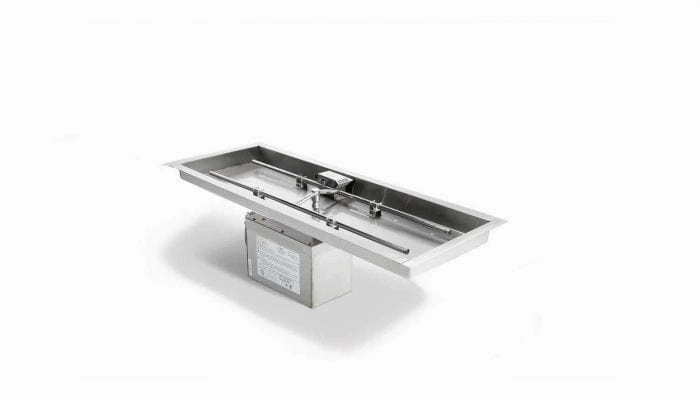

The HPC Fire EI Rectangular Bowl Pan 24X12SSEI-H is a fully assembled, commercial-grade certified Fire Pit insert. With a powerful high-quality construction material that has the latest technology, this will complement your gas fire pit project.
The Electronic Ignition design allows for a remotely controlled Fire Pit with an On/off or HI/LO setting. There is a flame sensing system that automatically shuts of the gas valve if the flames get turned off.
There is asidewall thataids with media retention, Pan Lip provides for the recessed burner and blowout box
Purchase the HPC Fire 24"x12" Rectangular Bowl H-Burner Pan Fire Pit 24X12SSEI-H here in Flame Authority!
Features
- Fully Assembled- ready to install. Control components are protected within the valve box.
- Start via wall switch or remote control; Auto re-light if the flame is lost.
- Ignition is complete using a robust and reliable Hot Surface igniter
- On/Off models: Use with optional wall switch, Remote Control, or your whole house system
- High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control included). Not for use with your whole house system.
- 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
- Natural Gas or Liquid Propane: Factory built & tested for either fuel.
- Internal temperature monitoring with overheat auto shutoff
Outdoor Fire Logs and Rocks
Arizona Weathered Oak
Aspen Birch
Rolled Lava Stone
- 2 Bags Required for this unit
Western Driftwood
Lava Rock
- 2 Bags Required for this unit
Black Ceramic River Rock
- 1 Box required for this unit
Fire Glass
- 40 lbs Required for this unit
Cobalt Blue
Pacific Blue
Pacific Blue Reflective
Black
Clear
Starfire
Gray Reflective
Copper
Bronze
Manuals
Specifications
- Model:24X12SSEI-H
- Dimensions:L-24" x W-12" x D- 2.5"
- Max BTU:75,000
- Nozzle BTU:115,000

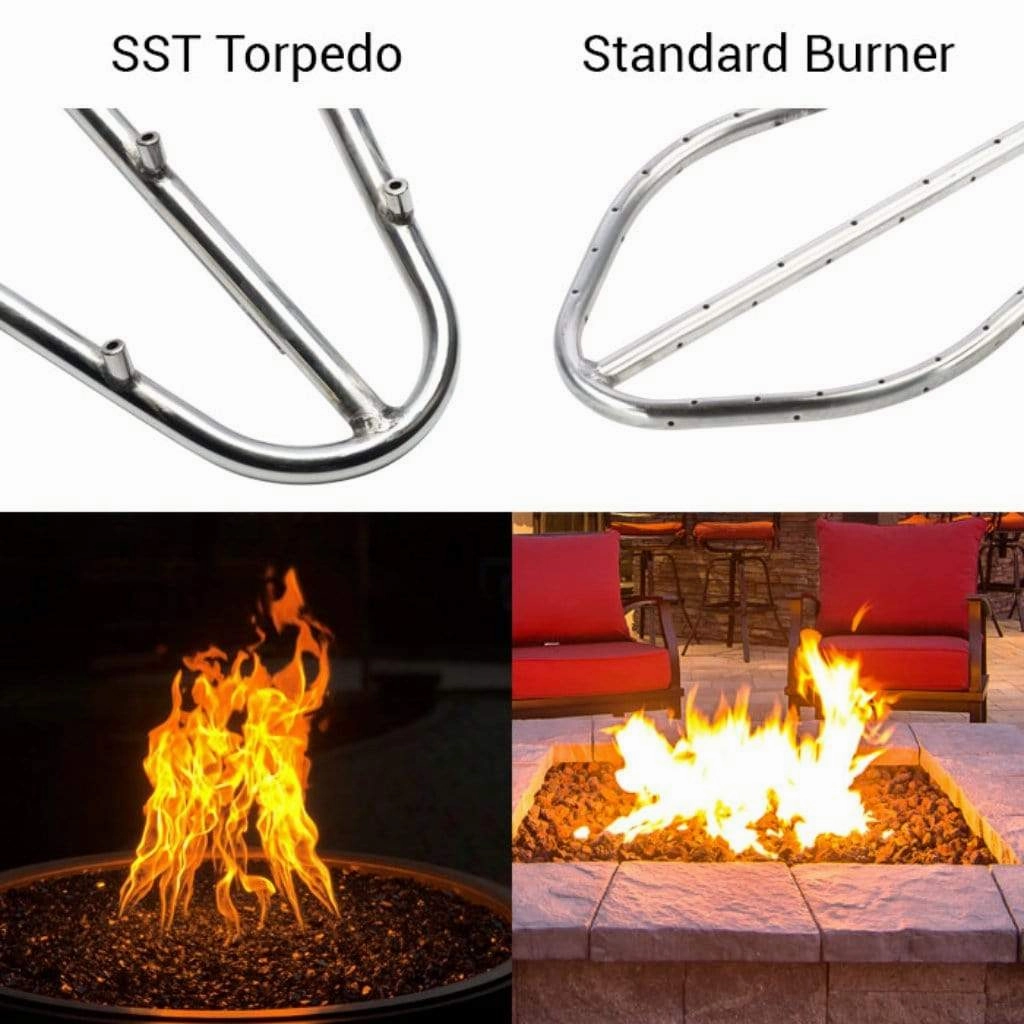

- Burner Type:18 X 6 H-Burner Standard / Torpedo
- Gas Type:Natural Gas / Liquid Propane
- Power Options:120VAC / 24VAC
- Ignition Style:Electronic Ignition On-Off / Hi-Lo (Bluetooth App)
- Required Items:Lava Rock / Rolled Lava Stones ( 2 bags ), Fire Glass ( 40 lbs )
- Certification:CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements. (This new EI system already meets upcoming 2020 ANSI requirements).
- Warranty:Lifetime warranty on burners
Optional Accessories
- POWER SUPPLIES - FOR 24VAC & 12VAC MODELS
- Input Primary - 120VAC, 60/50Hz, 1A max Output Secondary - 24VAC & 12VAC, 60/50Hz, 4A
- 120 VAC Outdoor On/Off Remote Control
- Used with EI Fire Pit Systems
- CARLON in-line power control with 3 prongs in/out
- Stainless Steel Rotary Timer
- Available in 2 and 12-hour timer
- 1/2 deep. Double gang box recommended.
- Rotary Timer with NEMA Box
- Available in 2 and 12-hour timer
- NEMA 3R Box with 694 or 695 timer
- Includes timer mounted into the NEMA 3R box for your convenience
- Commercial Emergency Stop
- Push-button with keyed reset allows supervisor confirmation.
- Safely turns off up to 3 circuits plus one fail-safe function.
