Name: HPC Fire 30" Square Flat Fire Pit Insert Kit PENTA30FPK-SQ-NG
SKU: 597540

30" Square HPC FireFlat Fire Pit Insert Kit PENTA30FPK-SQ-NG Product Details

This is our mid-range fire pit insert utilizing safety pilot flame control- simply push the ignition button and valve control knob to start flame adjustment is done with the knob. This battery-operated system is a good solution for flame sensing necessity without AC power requirements.

How It Works

Start-Up: This is done by simultaneously pressing the valve control knob to start the flow of pilot gas and pressing the ignition button for spark. Release spark after pilot ignition, release valve control knob after ~20 seconds. Then turn the valve control knob counterclockwise to light the main burner. Operation: Flame height may be adjusted by turning valve control knob- counterclockwise provides more flame, clockwise lowers flame. If flame loss does occur, the system will automatically turn off all gas flow. Shut Down: To turn OFF the fire pit simply turn the valve control knob clockwise- slightly depress knob to reach OFF position. This comes with a small tank.

Features:

Size: 30 Inches
Color: Stainless Steel
Product Dimensions: 30" W x 6.5" H x 30" D
Unassembled push-button ignition fire pit kit
Made from commercial grade 304 stainless steel
Square flat design for recess-mounted enclosures
Available in various sizes, including 18", 24", or 30"
Customizable with decorative accessories for a personalized touch

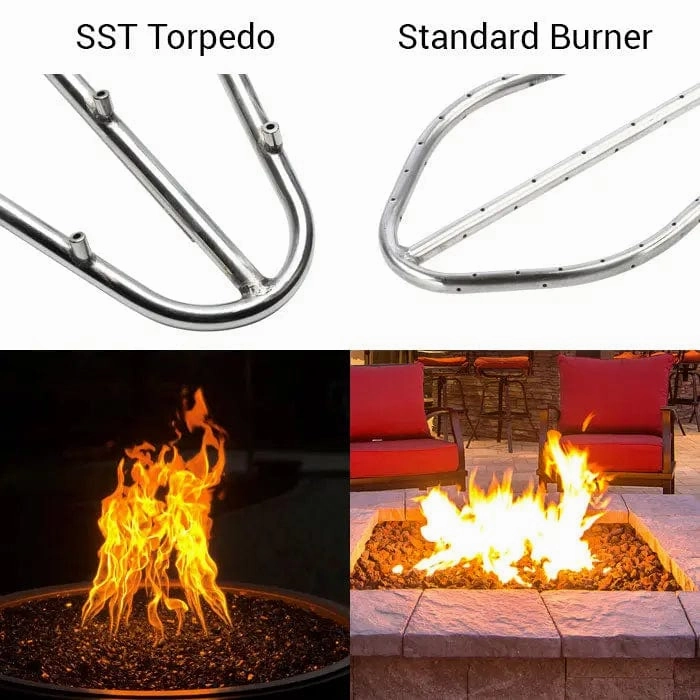

Features a 12", 18", or 24"Penta-shaped burner for a natural flame pattern
Limited 5-year warranty on stainless steel components for residential applications

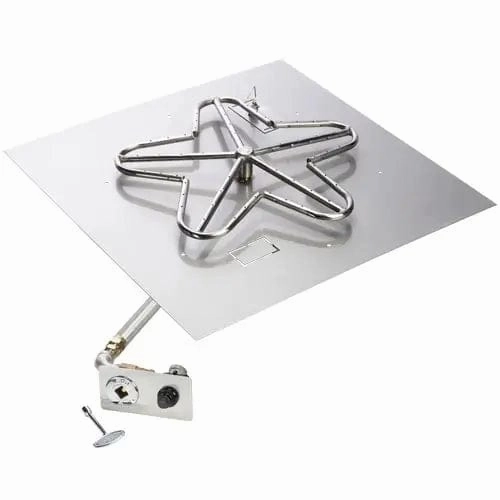

Includes a stainless steel pan and burner, push-button ignition switch and igniter, chrome decorative key valve, fittings, and flex line
Natural Gas

Purchase the HPC Fire 30" Square Flat Fire Pit Insert Kit PENTA30FPK-SQ-NG here in Flame Authority!

Manual

Manual:

Need assistance? Talk to an Expert at 1-800-923-4556 or email: [email protected]to get the best-suited FirePit Enclosure for your needs.

Specifications

Specifications:

Model: PENTA30FPK-SQ-NG
Dimensions: 30" W x 6.5" H x 30" D
Max BTU: 150,000
Burner: 30"
Gas Type: Natural Gas
Ignition Style: Push Button Flame Sensing
Required Items: Lava Rock / Rolled Lava Stone (2 bags), River Rock (2 boxes), Fire Glass (40 lb), Flex-Form Install Collar (2 boxes)
Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements.
Warranty: 5-year Warranty

Outdoor Fire Logs and Rocks

Arizona Weathered Oak

Aspen Birch

Rolled Lava Stone

2 Bags Required for this unit

Western Driftwood

Lava Rock

2 Bags Required for this unit

Black Ceramic River Rock

3 Boxes required for this unit

Fire Glass Media

100 lbs Required for this unit

Cobalt Blue

Pacific Blue

Pacific Blue Reflective

Black

Clear

Starfire

Gray Reflective

Copper

Bronze

Optional Accessories

60" Square Black Vinyl CoverFPC-60SQ

60" x 60" Square, Black Vinyl, Fire Pit Cover. Pull string at the bottom, Fits 48x48 - 60x60 enclosures.

37" Square Wind GuardWG37-SQ

Square, 37"x 37", 6" Height
Features:- Tempered Glass - Heavy duty 3/16 " clear glass is tempered to improve durability and allow it to withstand high temperatures. Depending on wind guard size- 4 or 6 sections complete the desired shape. Brackets- Polished aluminum brackets and plastic support feet provided.

44" SS Free Form Install Collar - 2per BoxIC44SS-FF

The flex form install collar merges the gap between the fire pit structure and the insert pan for easy installation and auto-centering featured with a curved lip. This flexible install collar allows for an easy 3 step installation saving you time with our one size fits all product. The collar can be formed to fit any shaped fire pit.
2 Boxes required for this unit
