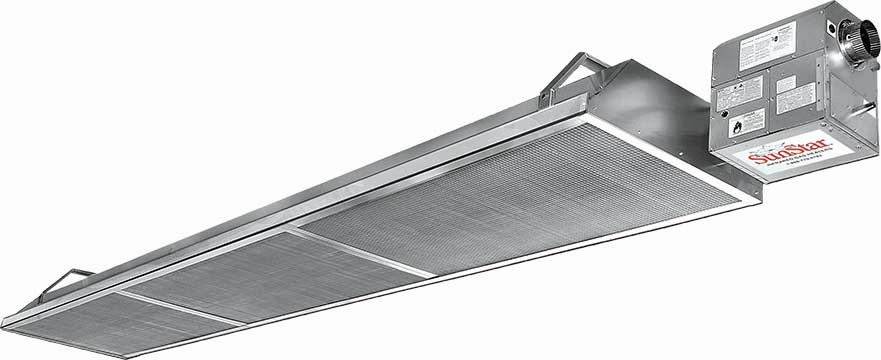

SPH Golf Range and Hospitality 30' Single Stage SunStar 125K BTU Tube Heater Product Details

* Ready to Ship * Proudly Made in the USA * Fastest Delivery *

NOTE: No Cancellation once the item is ordered. 8 weeks lead time.

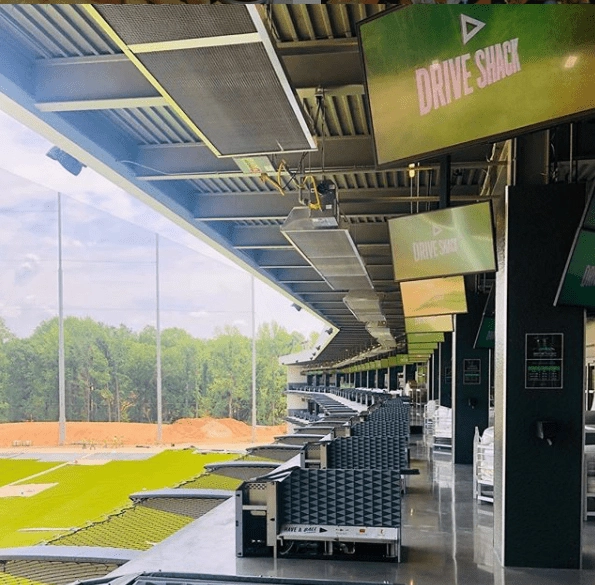

SPH Heaters for Golf Range and Hospitality Heating - Single Stage 30' Tube Length

Hospitality Infrared HeatersSpecifically Designed For Golf Ranges & Hospitality Applications.

Key Features:

• Seven input sizes from 40,000 BTU/HR to 125,000 BTU/HR
• Vented and indirect vented operation.
• Emitter Tubes are all calorized steel for higher radiant efficiency and corrosion resistance.
• Emitter tube terminates inside the reflector body and the products of combustion are discharged under the reflector body to increase the return tube temperature and improve overall efficiency.
• No exposed exhauster motors. The blower is enclosed inside the burner box for quieter system operation and less maintenance.
• Two Point Tube Suspension System with external frame brackets to minimize assembly & installation time.

Check out the SunStar SPH Golf Range and Hospitality 30' Single Stage 125K BTU Tube Heater now here at Flame Authority, your trusted dealer!

Features

Features:

Push-Through System

• Emitter Tubes are all calorized steel for higher radiant efficiency and corrosion resistance.
• Emitter tube terminates inside the reflector body and the products of combustion are discharged under the reflector body to increase the return tube temperature and improve overall efficiency.
• No exposed exhauster motors. The blower is enclosed inside the burner box for quieter system operation and less maintenance.
• Two Point Tube Suspension System with external frame brackets to minimize assembly & installation time.
• Seven input sizes from 40,000 to 125,000
• Vented and indirect vented operation.
• CSA Design Certified
• Year Limited Warranty On Emitter Tube

Manuals

Manuals:

Need assistance? Talk to an expert at 1-800-923-4556 or email [email protected] to get the best-suitedheaterfor your needs.

Specifications

Specifications:

• Model:
• SPH12530
• BTU/HR Input:
• 125,000
• BTU/HR High Input:
• 125,000
• BTU/HR Low Input:
• 80,000
• Total Emitter Length:
• 30 ft.
• Minimum Mounting Height:
• 14 ft.

Indicate model number based on Btu/hr input (e.g., 100,000 Btu/hr), total emitter length, (e.g., 100 feet) and gas type (e.g., natural gas single stage input). The unit selection for a straight tube would be SPH-100-N5, *MOUNT HEATERS AS HIGH AS POSSIBLE. Minimums are shown for indoor applications as a guideline for human comfort and uniform energy distribution.

For outdoor applications heaters can be mounted lower. Consult your Sunstar representative for the particulars of your installation requirements.

• Control Suffix:
• N5/ L5
• Fuel Type:
• Natural / Propane
• Control Option Description:
• Single Stage Gas Valve- Single-Stage Input

SPH Clearance to Combustibles

• Model: SPH 60, 75, 80
• Side:28"
• Ceiling*:10"
• Below:86"
• End:20"
